The Baja Designs Squadron-R 2.0 Pro is the next evolution of our most trusted compact LED light pod. Completely redesigned from the inside out, the Squadron-R 2.0 Pro features a larger 4-inch round bezel for those that want more traditional styling and for aftermarket bumpers with a round hole, next-generation optics, and a powerful 5,921 lumen output at 65W—delivering a 21% performance increase over the previous generation with improved beam control and efficiency. Precision-engineered optics produce a refined beam pattern that projects light farther and wider while minimizing spill, giving you more usable illumination exactly where you need it.
Whether you're navigating tight trails, wide open desert, or long road trips, the Squadron-R 2.0 Pro delivers maximum clarity and confidence after dark. Every detail has been upgraded to raise the standard for compact LED light pods while preserving the proven reliability Baja Designs is known for. The new housing, featuring our signature gloss black aluminum finish, provides a bold, modern look while maintaining the unmistakable Baja Designs identity.
New enhancements include updated lens patterns tuned for the redesigned optics, a rugged 4-pin Deutsch connector for increased durability, and an all-new color-selectable backlight with nine selectable colors to match your vehicle’s style. Improved uService® thanks to the new secure clip-in reflectors for easy lens changes and a redesigned gasket for superior sealing and long-term protection against the elements. A new mounting bracket also offers increased vertical adjustability for more precise aiming. Setting a bold new benchmark for LED auxiliary lighting, the Squadron-R 2.0 Pro is engineered for enthusiasts who demand uncompromising nighttime visibility. Like all Baja Designs products, it’s backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty for complete peace of mind.

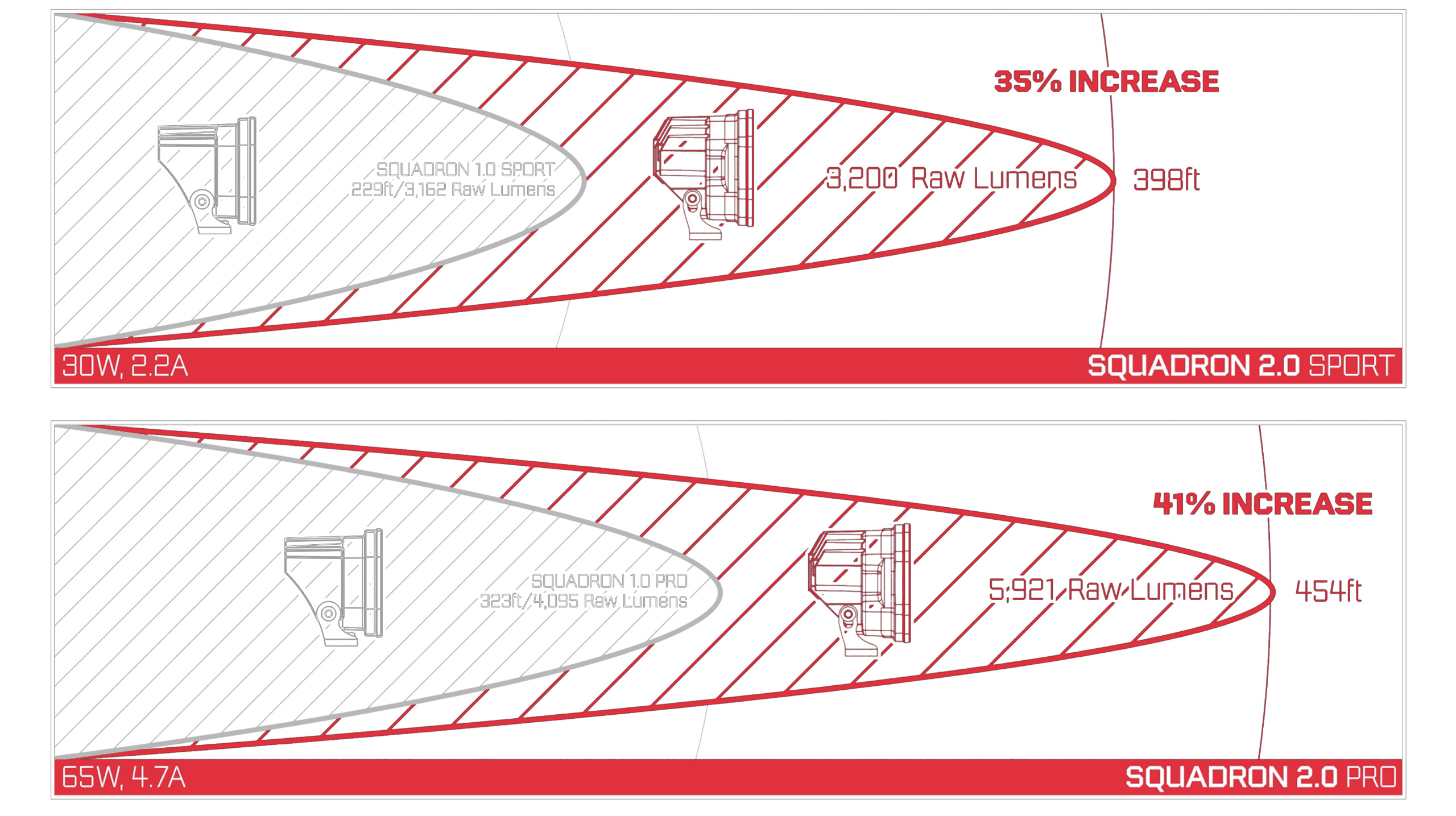

High Output Performance
The Squadron 2.0 Sport produces 3,200 lumens at 30W. Next-generation optics throw light farther and wider while minimizing wasted spill, delivering more usable illumination exactly where you need it.
For drivers demanding maximum output, the Squadron 2.0 Pro throws 5,921 lumens at 65W a 41% increase in power over previous generation. Both configurations operate on 12-36V systems and are available in harness and non-harness pair options.

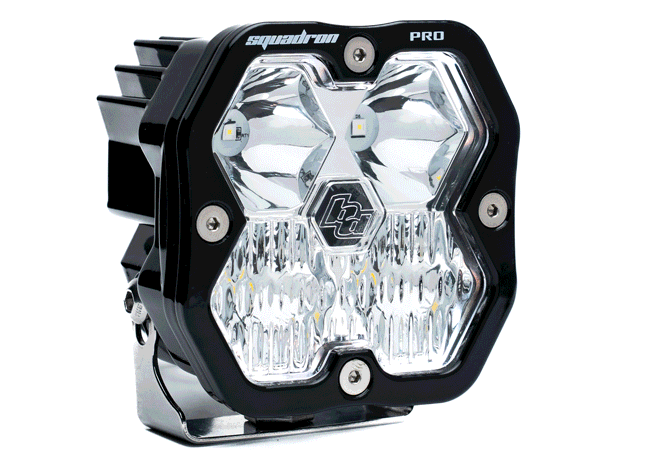

Color Selectable Backlight
The Squadron 2.0 features an integrated 9-color selectal backlight. Drivers can toggle between red, green, blue, magenta, cyan, amber, yellow, pink, and white, all configurable through the included harness. Color settings are retained when the light is powered off, so your setup is always ready when you are.
Features:
- Refined beam pattern provides greater distance, wider coverage, and reduced light spill
- Color-selectable backlight with 9 selectable colors to match any vehicle
- New clip-in reflectors stay secure during lens changes, improving uService®
- New gasket design improves sealing and protection against the elements
- Redesigned mounting bracket allows greater vertical adjustability
- Standard 4-pin Deutsch connector for improved wiring harness durability
Squadron-R 2.0 Pro Specifications:
- Lumens: 5,921
- Watts/Amps: 65W/5.2A @13.8V
- Operational Voltage: 12-32V
- IP69K Rated
ELS™ Scores:
- Squadron-R 2.0 Pro Spot Clear: ELS 86°/6.1/454/4930
- Squadron-R 2.0 Pro Driving Combo Clear: ELS 128°/7.4/403/4955
- Squadron-R 2.0 Pro Wide Cornering Clear: ELS 132°/7.6/159/4946
- Squadron-R 2.0 Pro Work/Scene Clear: ELS 148°/8.0/64/4575
Harness Kit Includes:
- (2x) Squadron-R 2.0 Pro Light Pods
- (1x) Wiring Harness
- All Necessary Mounting Hardware
